Winspace C5 Aero Road Bike - Shimano Ultegra Di2
Winspace C5 Aero Ultegra Di2 Complete Bike — Build Your Dream Bike

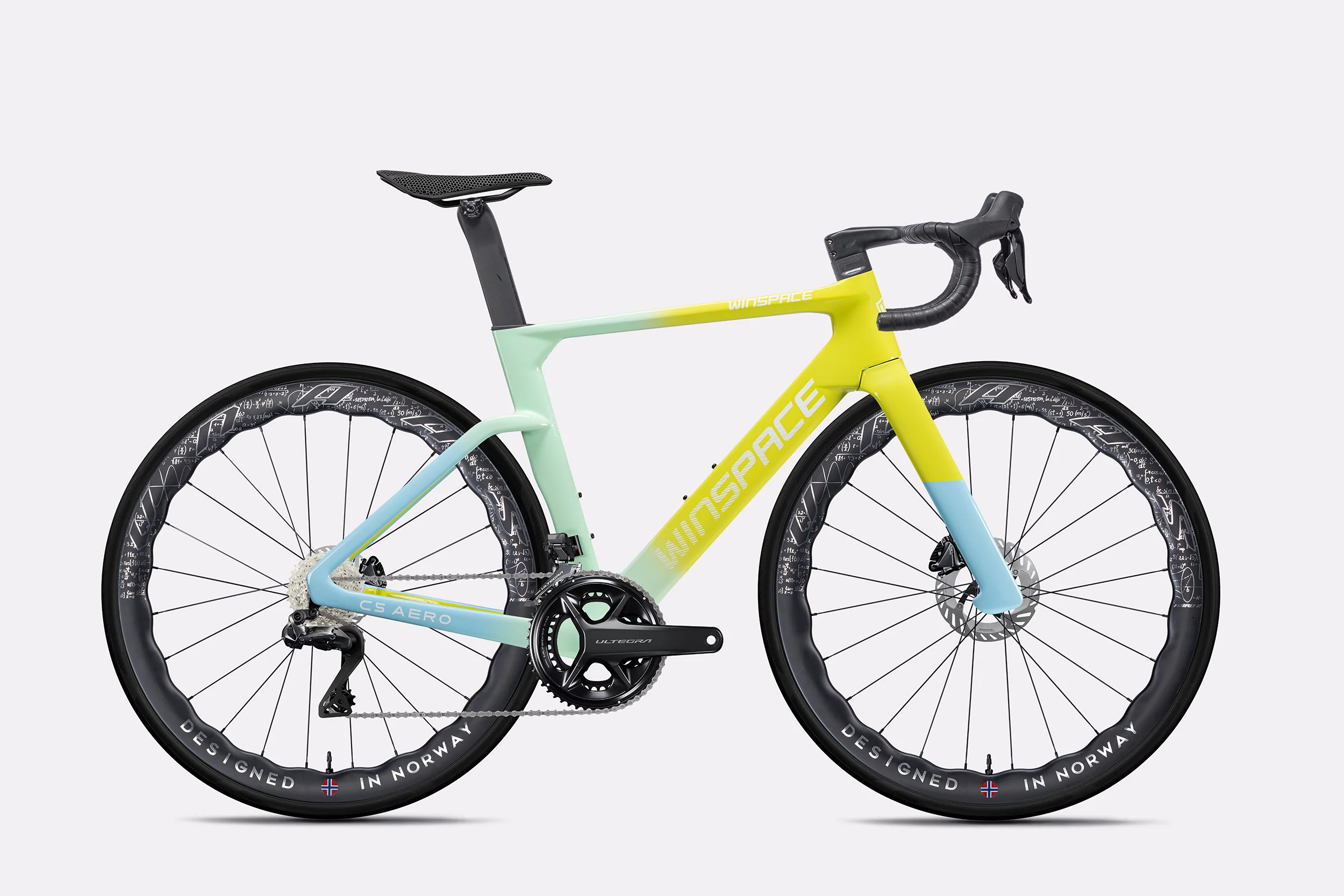

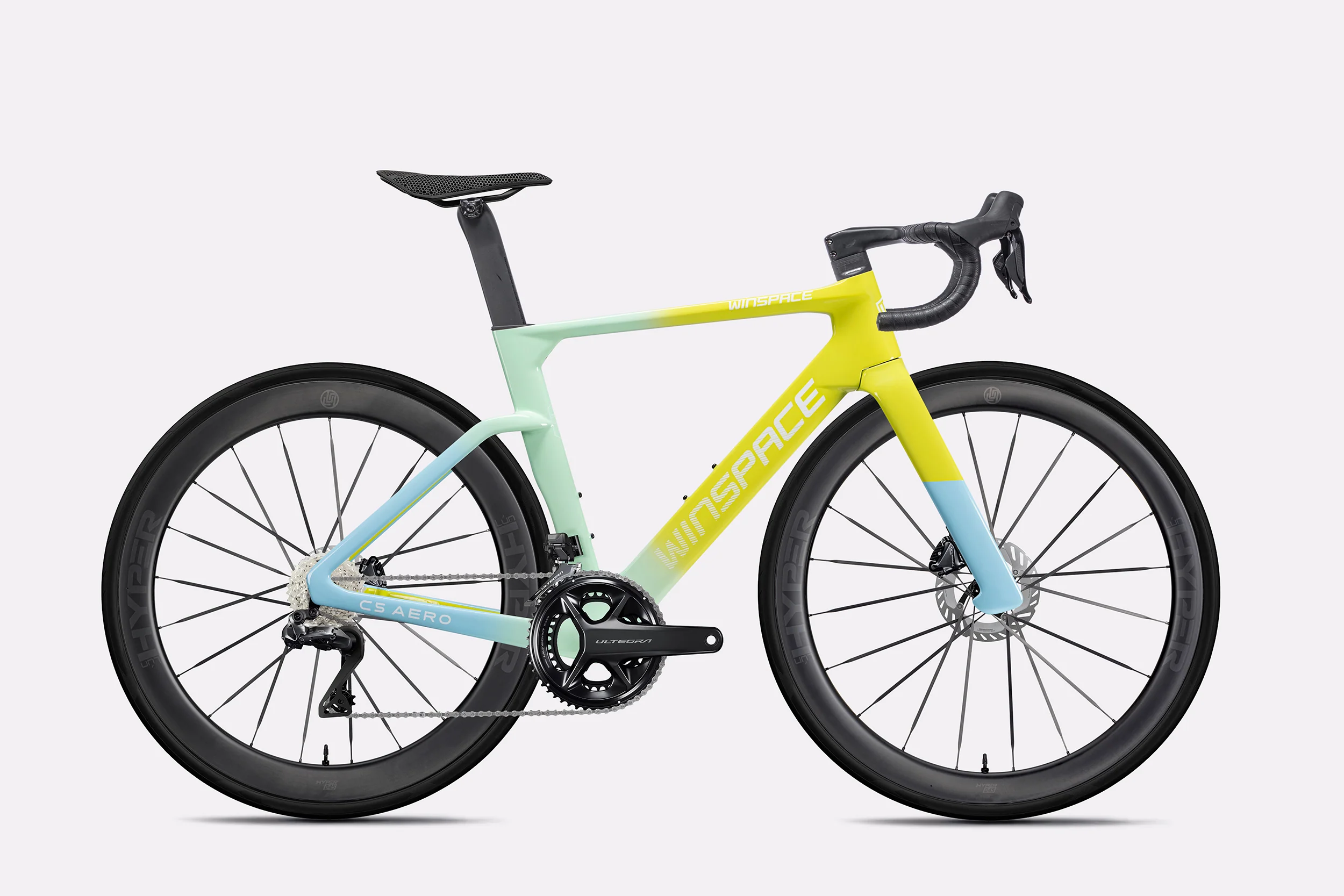

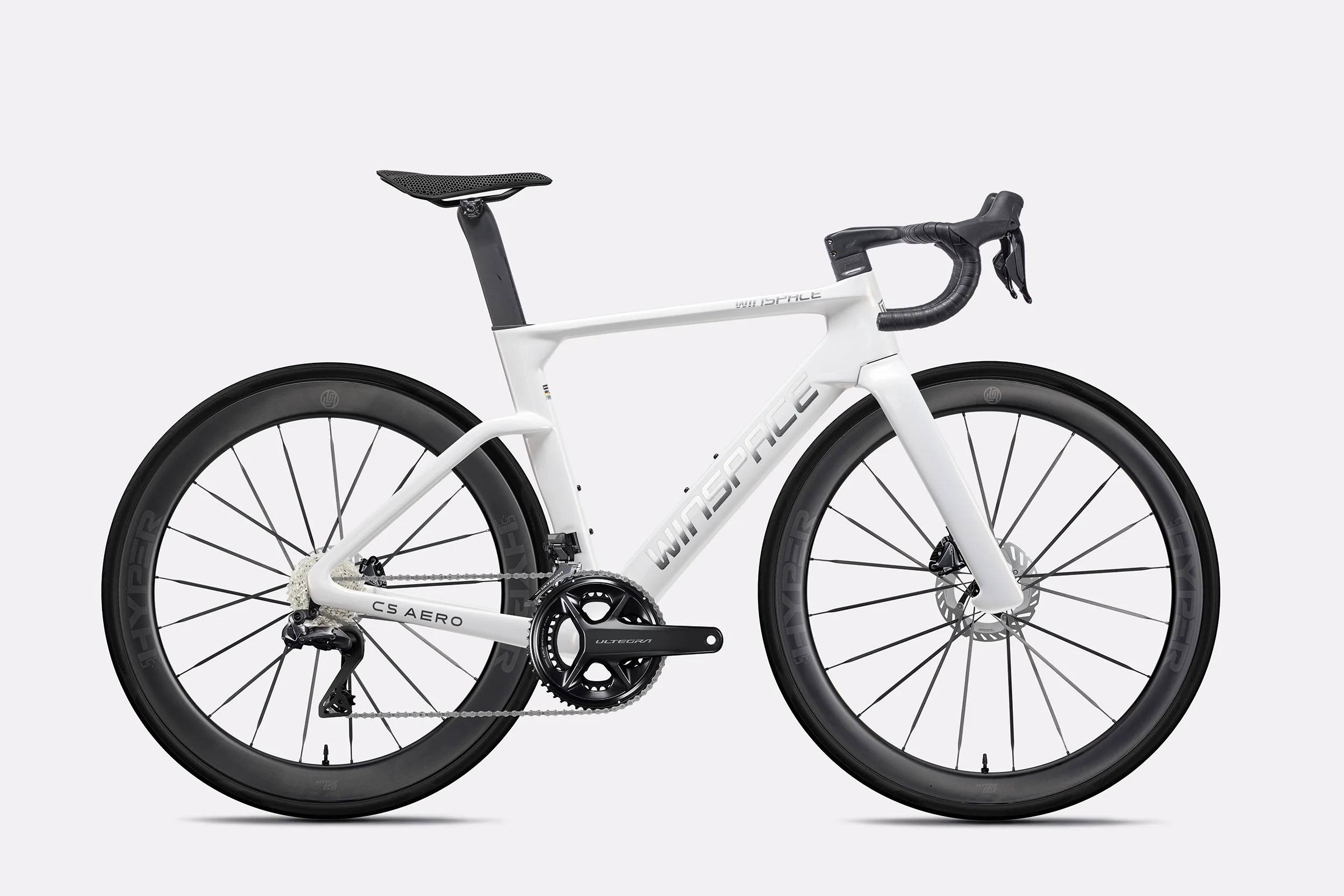

The all-new Winspace C5 Aero is where endurance meets aerodynamics. Constructed with Toray T800 and High-Modulus M Series carbon, it sheds 115g from its predecessor while improving high-speed stability and wind-cutting performance. Wind tunnel-tested and race-proven, it delivers a 5-minute advantage over 100km in crosswind conditions.
Complete Bike Set Up & Custom Options
- Shimano Ultegra Di2 groupset, with lightning-fast, electronic shifting and world-class braking precision.
- The Carbon Project carbon 3D printed saddle weighing only 200g.
- Choose your bar and stem size. The seamless Winspace Zero SL intergrated bar and stem can be customised to your size preferences for width (380mm, 400mm, 430mm) and length (85mm-135mm).
- Choose your cassette and crank length to customise the bike to your size preferences.
- Choose your preferred wheel, rim depth and tire (28mm or 30mm, black/tan wall). Choose between the UNAAS HARD2 (rim depth 50/45mm wavy) or the HYPER 3 (rim depth 33mm, 45mm, 67mm).
Technical Specifications

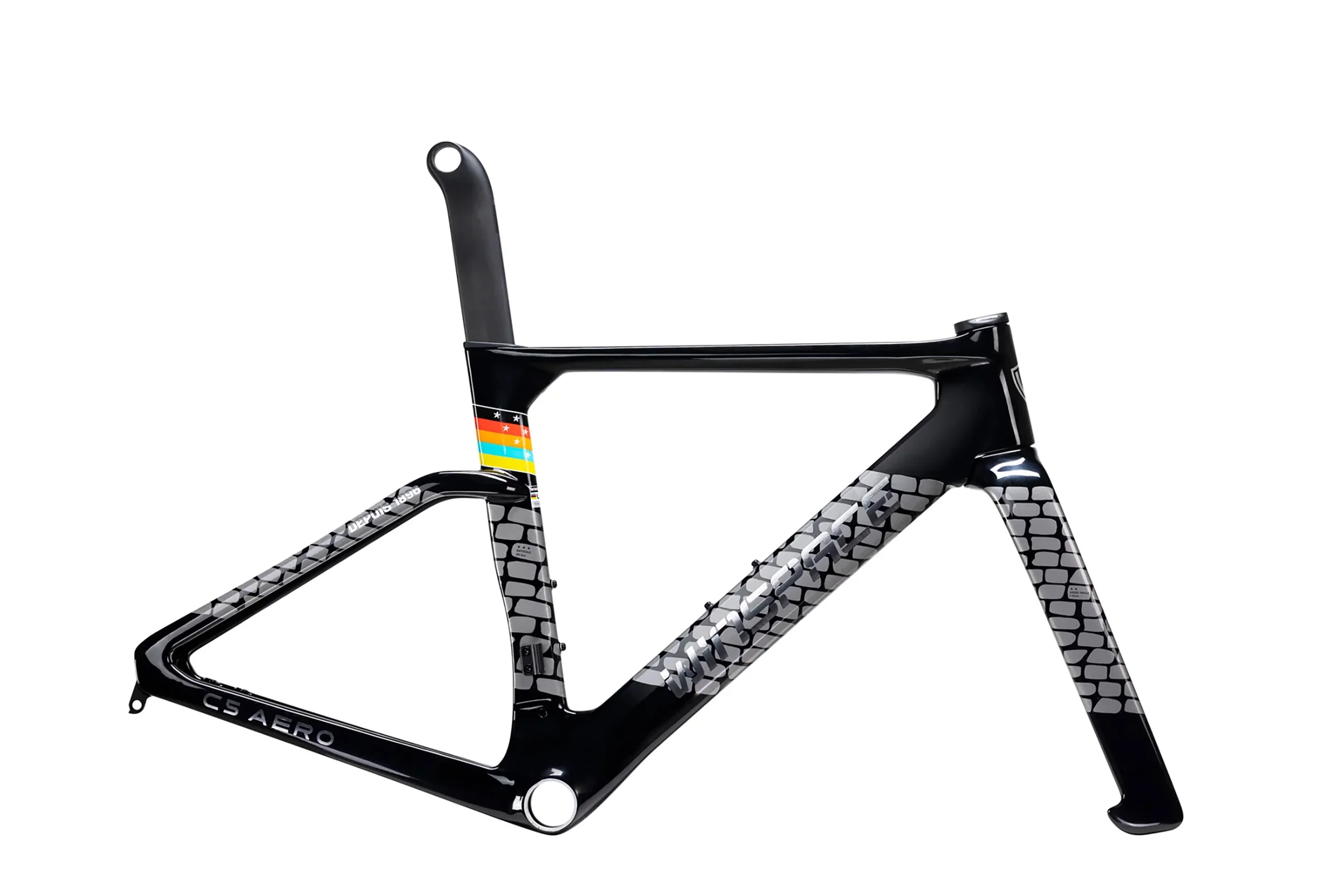

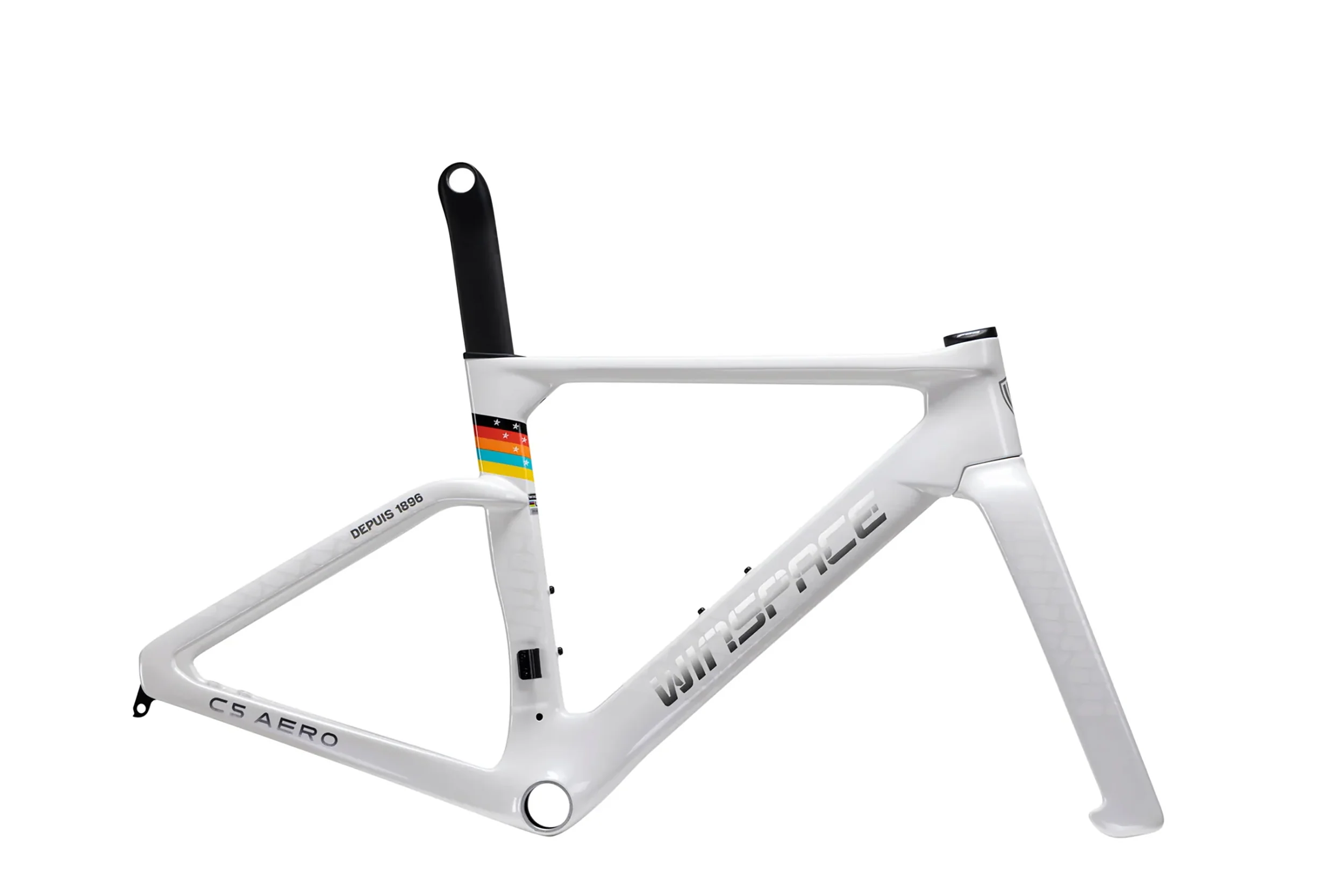

- Frame: C5 Toray T800 and High-Modulus M Series carbon
- Headtube: NO.55R 1.5 / ACR/STD
- Wheel Axles: 12mm thru-axle (F100mm, R142mm).
- Handlebar/Stem: Winspace Zero SL Integrated Bar and Stem. Customise to your size preferences.
- Seatpost: Winspace Aero seatpost
- Saddle: TCP 3D printed carbon saddle
- Drivetrain: Shimano Ultegra Di2 12-speed (50/34 or 52/36 Crankset + 11-30 or 11-34 Cassette)
- Front brake: Shimano Ultegra Di2
- Rear Brake: Shimano Ultegra Di2
- Shift Levers: Shimano Ultegra Di2
- Front Derailleur: Shimano Ultegra Di2
- Rear Derailleur: Shimano Ultegra Di2
- Rotors: Shimano Ultegra (140 or 160mm)
- Crankset: Shimano Ultegra (165, 170, 172.5 or 175mm), (50/34 or 52/36)
- Chain: Shimano Ultegra
- Bottom Bracket: Wishbone Ceramic T47 Inboard
- Tyres: Goodyear Eagle F1 (700x28c or 700x30c).
- Bartape: C2 Black
- Wheels: Choose between the UNAAS HARD2 (rim depth 50/45mm wavy) or the HYPER 3 (rim depth 33mm, 45mm, 67mm).
Select Size
Select Colour
Select Wheelset
From $1,902.23
Original: $6,340.78
-70%Winspace C5 Aero Road Bike - Shimano Ultegra Di2—
$6,340.78
$1,902.23
Description
Winspace C5 Aero Ultegra Di2 Complete Bike — Build Your Dream Bike
The all-new Winspace C5 Aero is where endurance meets aerodynamics. Constructed with Toray T800 and High-Modulus M Series carbon, it sheds 115g from its predecessor while improving high-speed stability and wind-cutting performance. Wind tunnel-tested and race-proven, it delivers a 5-minute advantage over 100km in crosswind conditions.
Complete Bike Set Up & Custom Options
- Shimano Ultegra Di2 groupset, with lightning-fast, electronic shifting and world-class braking precision.
- The Carbon Project carbon 3D printed saddle weighing only 200g.
- Choose your bar and stem size. The seamless Winspace Zero SL intergrated bar and stem can be customised to your size preferences for width (380mm, 400mm, 430mm) and length (85mm-135mm).
- Choose your cassette and crank length to customise the bike to your size preferences.
- Choose your preferred wheel, rim depth and tire (28mm or 30mm, black/tan wall). Choose between the UNAAS HARD2 (rim depth 50/45mm wavy) or the HYPER 3 (rim depth 33mm, 45mm, 67mm).
Technical Specifications
- Frame: C5 Toray T800 and High-Modulus M Series carbon
- Headtube: NO.55R 1.5 / ACR/STD
- Wheel Axles: 12mm thru-axle (F100mm, R142mm).
- Handlebar/Stem: Winspace Zero SL Integrated Bar and Stem. Customise to your size preferences.
- Seatpost: Winspace Aero seatpost
- Saddle: TCP 3D printed carbon saddle
- Drivetrain: Shimano Ultegra Di2 12-speed (50/34 or 52/36 Crankset + 11-30 or 11-34 Cassette)
- Front brake: Shimano Ultegra Di2
- Rear Brake: Shimano Ultegra Di2
- Shift Levers: Shimano Ultegra Di2
- Front Derailleur: Shimano Ultegra Di2
- Rear Derailleur: Shimano Ultegra Di2
- Rotors: Shimano Ultegra (140 or 160mm)
- Crankset: Shimano Ultegra (165, 170, 172.5 or 175mm), (50/34 or 52/36)
- Chain: Shimano Ultegra
- Bottom Bracket: Wishbone Ceramic T47 Inboard
- Tyres: Goodyear Eagle F1 (700x28c or 700x30c).
- Bartape: C2 Black
- Wheels: Choose between the UNAAS HARD2 (rim depth 50/45mm wavy) or the HYPER 3 (rim depth 33mm, 45mm, 67mm).
